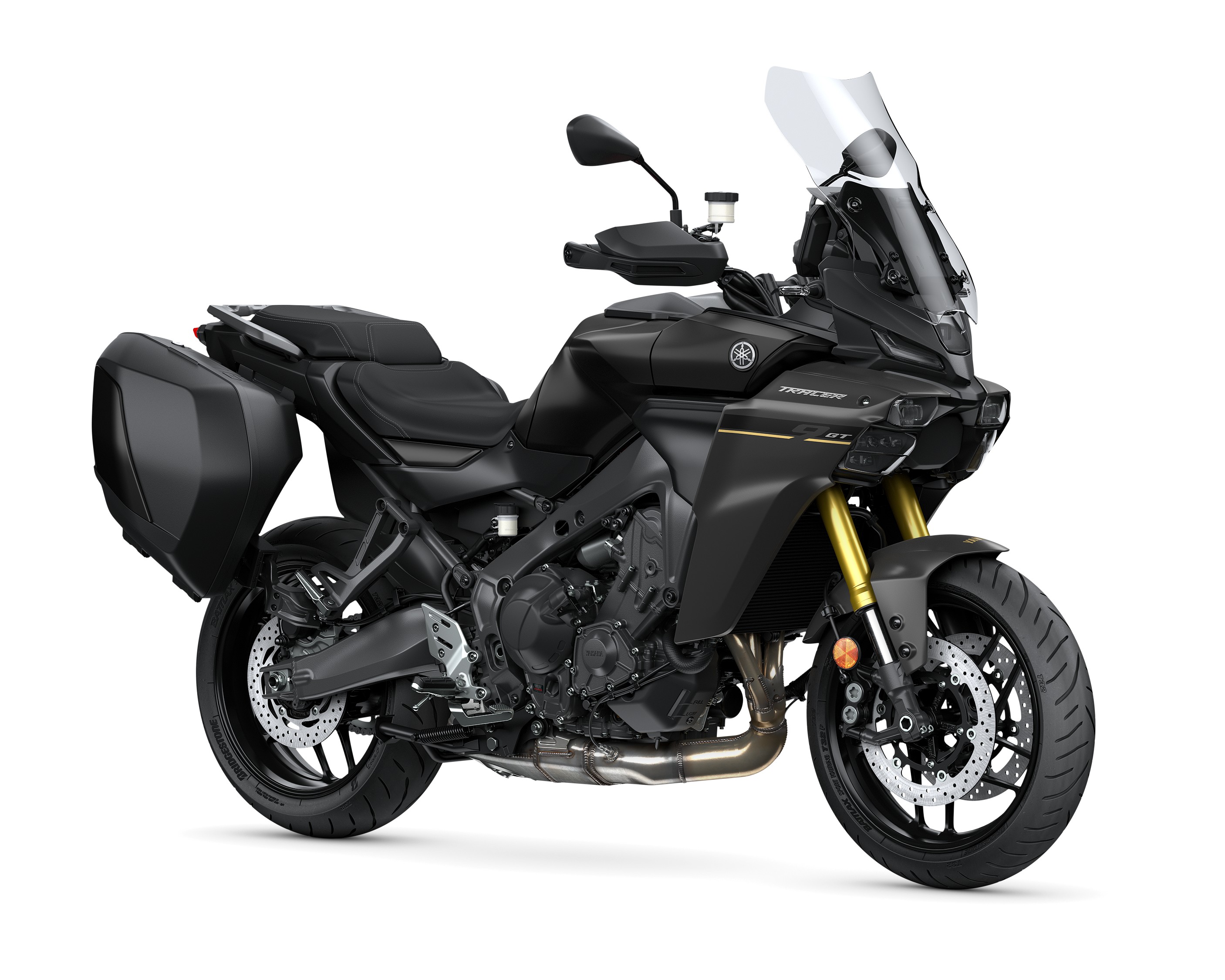

TRACER 9GT
Powering the all-new Tracer 9 GT is a completely
redesigned 890cc CP3 crossplane technology
engine that is lighter, more powerful and more
advanced than the original powerplant that
forever changed the image of the Sports Touring
class. Our CP3 architecture lays the foundations
for a completely new engine.
Fully EU5-compliant, the sophisticated new inline
three-cylinder engine features an increased
capacity of 890cc thanks to a 3mm enlargement
in the bore diameter, and this significant cc boost
contributes towards a 7% increase in torque
output. This much higher torque output of 9.5kgm/93 Nm is produced at 7000rpm – 1500rpm
lower down the rev range than previously – for
outstanding acceleration and rapid overtaking.
- Maximum comfort, cruise control and heated grips
- Quick Shifter for very smooth gear changes
- TFT color devices (Thin Film Transistor)
- Side bags in the same color with the standard livery
- Improved high quality design
- Improved ergonomics and wind protection
- New saddle to increase rider and passenger comfort
- Compact and lightweight 847 cc 3-cylinder engine
- Die-cast aluminum frame
- Anti-overlapping clutch, D-MODE, TCS, ABS
- 18-liter tank for remarkable autonomy
- Central standard stand
SPECIFICATIONS
Engine type Liquid-cooled, 4-stroke, four-valves, triple cylinder DOHC
Displacement 890cc
Bore x stroke 78 x 62.1mm
Compression ratio 11.5 : 1
Lubrication system Wet sump
Clutch type Wet, multiple disc
Fuel management Fuel injection
Ignition system TCI
Starter system Electric
Transmission system Constant mesh, six-speed with assist and slipper clutch
Final transmission Chain
Frame Diamond
Front suspension system Electronically controlled multi-adjustable forks
Front travel 130mm
Rear suspension system Electronically controlled multi-adjustable monoshock
Rear travel 137mm
Front brake Twin discs, Ø 298 mm
Rear brake Single disc, Ø 245 mm
Brake system Radial master cylinder and calipers, triple disc with ABS
Front wheel/tyre 10-spoke cast aluminium 120/70ZR17 Bridgestone BATTLAX HYPERSPORT S22F E
Rear tyre wheel/tyre 10-spoke cast aluminium 180/55ZR17 Bridgestone BATTLAX HYPERSPORT S22R E
Overall length 2175 mm
Overall width 885 mm
Overall height 1430 to 1470 mm
Seat height 810 to 825 mm
Wet weight 213kg with 18 litres of fuel and fluids
