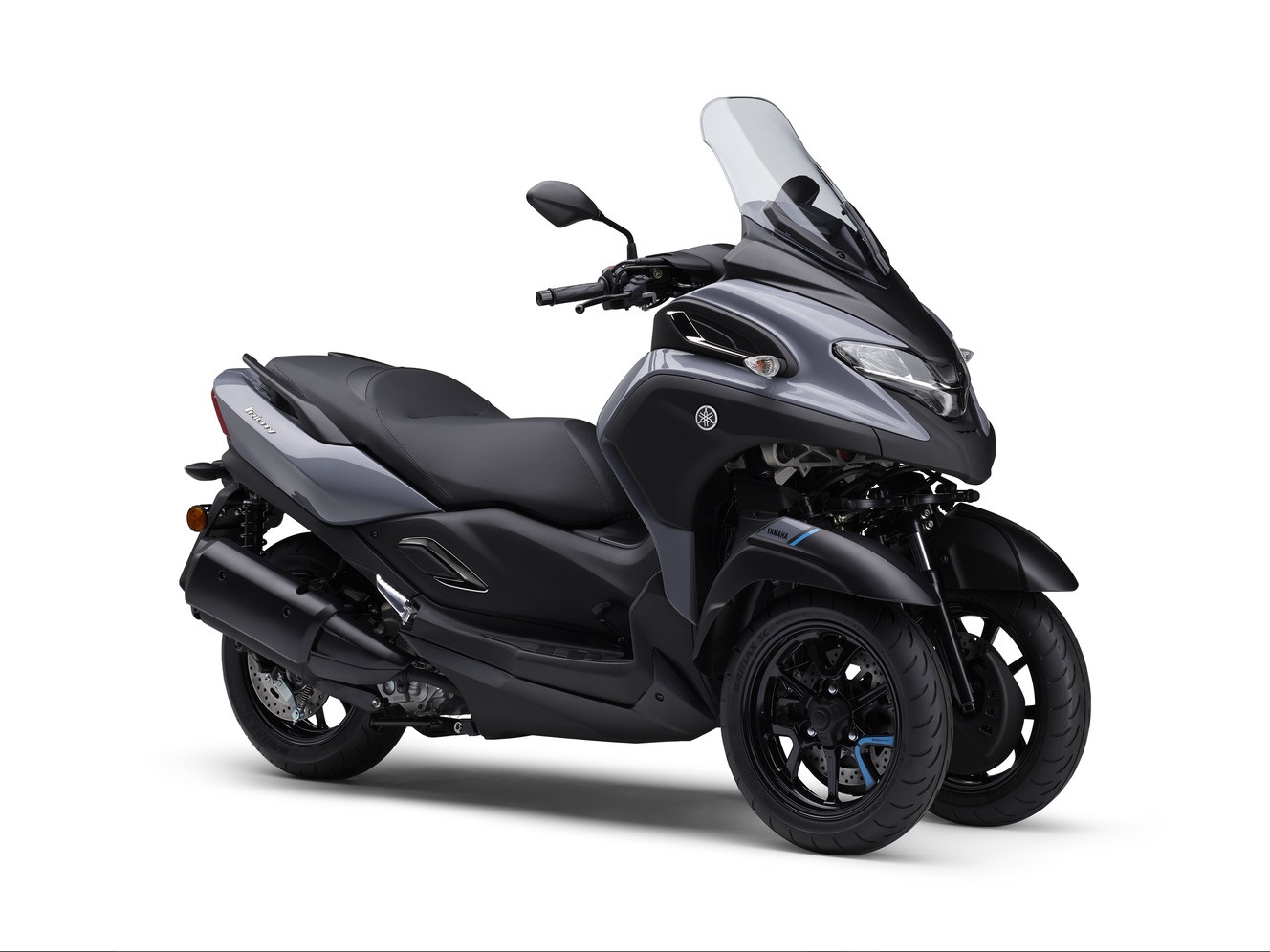

TRICITY 300

Not all three-wheel motorcycles are created equal.
The new Tricity 300 is equipped with one of the
industry's most sophisticated front-end designs.
The Yamaha-exclusive Leaning Multi Wheel (LMW)
technology has been proven on the Tricity 125/155 as
well as the remarkable NIKEN/GT Sport Tourer. It has
now been further adapted to meet the requirements
of Urban Mobility.
The highly advanced LMW Ackerman suspension/
steering system features a parallelogram link and
cantilevered front suspension with dual fork tubes
mounted on the inner face of the front wheels. This
layout gives sporty, agile, and confident handling
together with enhanced feelings of stability when
riding on slippery or uneven surfaces. The wide
470mm track adds to the balanced and planted
character when steering and cornering,
Having two front wheels means that the rider
benefits from additional front-end traction and
plenty of braking power from two front discs, and
this reinforces the feelings of security, stability, and
confidence associated with the three-wheel layout.

Overall length 2250 mm
Overall width 815 mm
Overall height 1470 mm
Seat height 795 mm
Wheelbase 1595 mm
Minimum ground clearance 130 mm
Engine type Liquid-cooled, SOHC, 4-stroke
Cylinder arrangement Single
Displacement 292 cc
Bore × stroke 70.0 x 75.9 mm
Compression ratio 10.9:1
Starting system type Electric
Lubrication system Wet sump
Engine oil capacity 1.50 L
Fuel tank capacity 13 L
Fuel delivery Fuel Injection
Ignition system type TCI
Primary reduction ratio 1
Secondary reduction ratio 7.590 (48/18 x 37/13)
Clutch type Dry, Centrifugal, Shoe
Transmission type/Shift type V-Belt Automatic
Caster angle 20.0°
Trail 68mm
Wet weight (all fluids & full tank of fuel) 237 kg
Tyre size (front/rear) 120/70-14M/C 55P, 140/70-14M62P
Warranty 24 months unlimited kilometres
Colours Nimbus Grey
