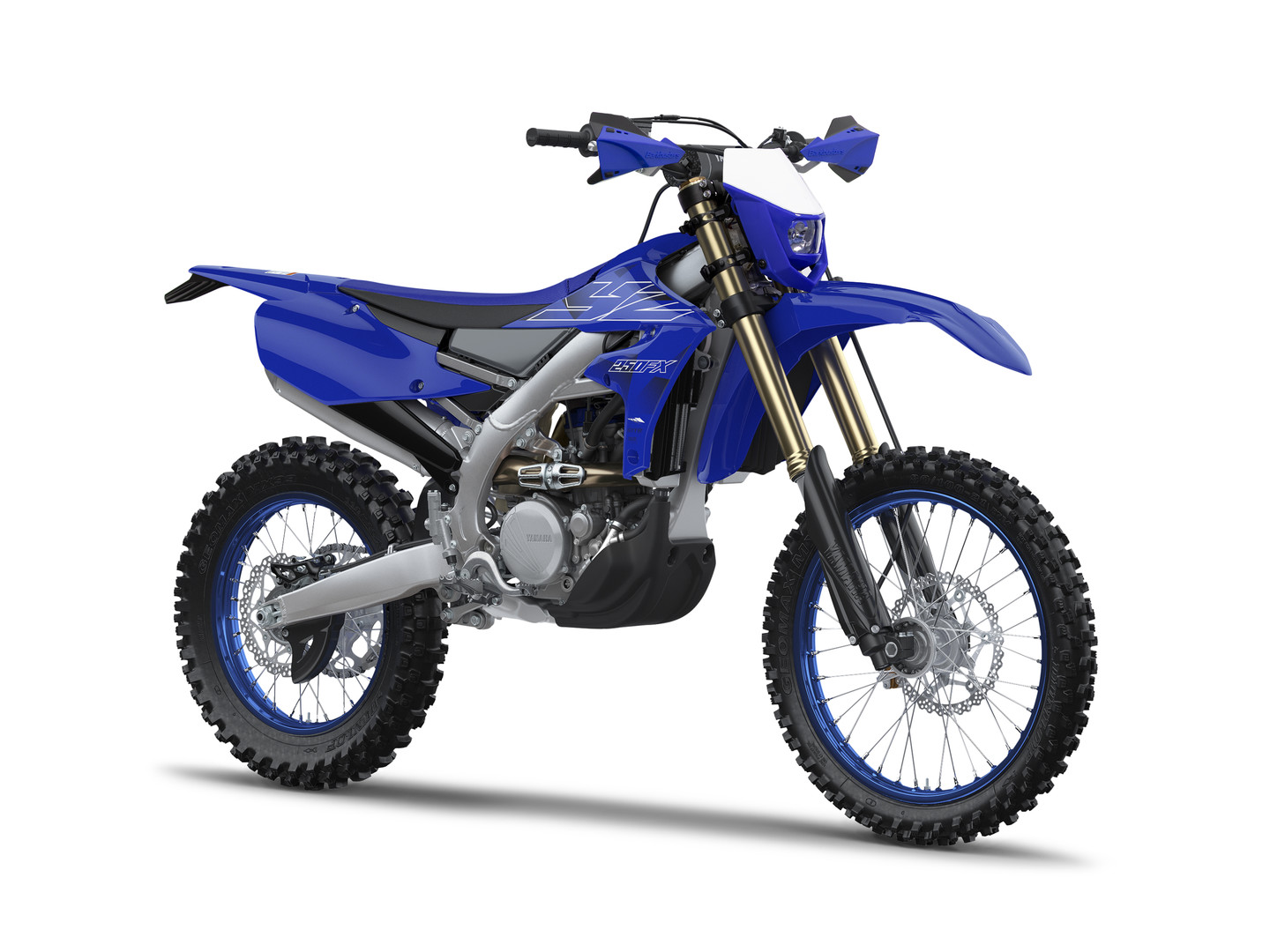

This purpose built enduro racer is built for riding in the bush – fast. Developed as an off-road version of the YZ250F, this cross country racer is equipped with enduro optimised engine and suspension settings. For Australia, YZ250FX comes with an off road kit that includes handguards, rearview mirror, lights and a horn. This allows the model to qualify for recreational registration in applicable states.
This revolutionary rearward slanted 250cc, liquid-cooled, DOHC 4-stroke with 4 titanium valves is based on the YZ250F, add in a sixth gear and wide ratio transmission, among other modifications, makes it an “out-of-the-box” cross country competition machine.
The YZ250FX benefits from a refined hydro-formed bilateral beam frame constructed from ten different types of forged, cast and extruded aluminium parts.Compared to the 2016 design, the 2017 frame is around 12mm wider in the area behind the swingarm pivot point, and this increased torsional rigidity ensures a higher degree of handling stability.
The exhaust system is based on the current YZ250F, combined with fuel injection, this contributes to mass centralisation and outstanding off-road performance. The YZ250FX is the first YZ to feature electric start which helps reduce rider fatigue.
Industry leading KYB air/oil separation Speed Sensitive System forks and a KYB rear shock suspension with settings designed specifically for cross country racing.
Engine
| Engine Type | Liquid cooled 4-stroke, DOHC, 4-valve |
|---|---|
| Displacement | 250 cc |
| Bore x Stroke | 77.0 x 53.6 mm |
| Compression Ratio | 13.5 : 1 |
| Lubrication System | Wet sump |
| Fuel Management | Fuel Injection |
| Ignition | TCI |
| Starter System | Electric/Kick |
| Fuel Tank Capacity | 7.5 L |
| Oil Capacity | 1.1 L |
| Transmission | Constant mesh 6-speed |
Dimensions
| Length | 2165 mm |
|---|---|
| Width | 825 mm |
| Height | 1280 mm |
| Seat Height | 965 mm |
| Wheelbase | 1465 mm |
| Ground Clearance | 325 mm |
| Dry Weight | 106 kg |
| Wet Weight | 113 kg with 7.5 litres of fuel |
Chassis
| Frame Type | Bilateral Beam |
|---|---|
| Suspension Front | Telescopic fork, 310mm |
| Suspension Rear | Swingarm, 318mm |
| Brakes Front | Single disc, 250mm |
| Brakes Rear | Single disc, 245mm |
| Tyres Front | 90/90-21 54M |
| Tyres Rear | 130/90-18 69M |
